01 / PRODUCT IMAGE
2026 catalogue ↗Standing Desk Frames / Heavy duty
NT33-4NBF2
Four-leg 300 kg lifting workbench
A high-load four-leg lifting platform.
- Load capacity
- 300 kg
- Height range
- 700–1200 mm
- Speed
- 18 mm/s
- Stroke
- 500 mm
NATE 2026 COLLECTION CATALOGUE PP. 17–18
01 / PRODUCT SPECIFICATIONS
The details.
Clearly defined.
Specifications for NT33-4NBF2, as listed in the NATE 2026 catalogue.
| Height range | 700–1200 mm |
|---|---|
| Frame width | 1250 mm |
| Speed | 18 mm/s |
| Load capacity | 300 kg |
| Stroke | 500 mm |
02 / TECHNICAL REFERENCE

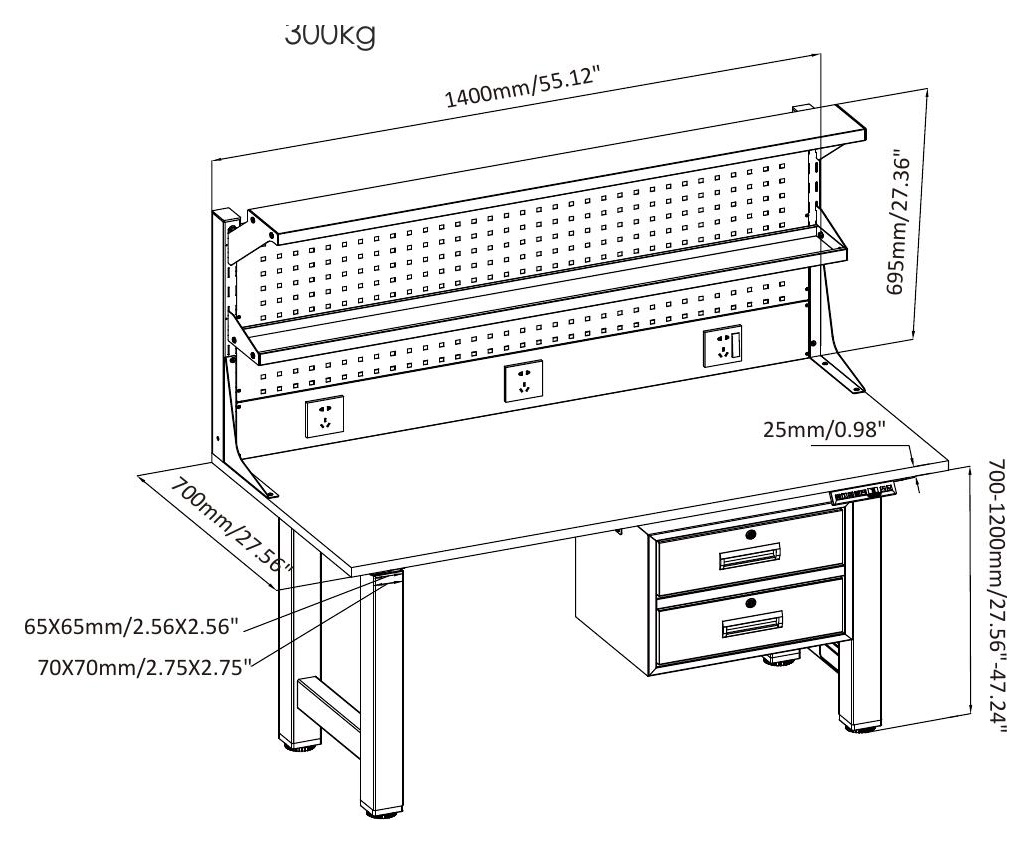

Dimensions & drawings
Dimensions and annotations are reproduced from the product catalogue. Refer to the labels on the drawing for units.
PRODUCT QUESTIONS, ANSWERED
Before you specify.
What is the load capacity of NATE NT33-4NBF2?
The NATE 2026 catalogue lists 300 kg for NT33-4NBF2. This is the load capacity of the listed configuration, not its own weight.
What height range does NT33-4NBF2 offer?
The published height range is 700–1200 mm. The listed lifting speed is 18 mm/s.
Where can I find the dimensions and source for NT33-4NBF2?
This page provides the original dimension drawing. Open the technical reference above and the original catalogue on printed pages 17–18. Confirm the final configuration with NATE.
