01 / PRODUCT IMAGE
2026 catalogue ↗Standing Desk Frames / Heavy duty
NT33-2NF2
300 kg height-adjustable workbench
A two-leg lifting solution for heavy equipment.
- Load capacity
- 300 kg
- Height range
- 740–1195 mm
- Speed
- 8 mm/s
- Stroke
- 455 mm

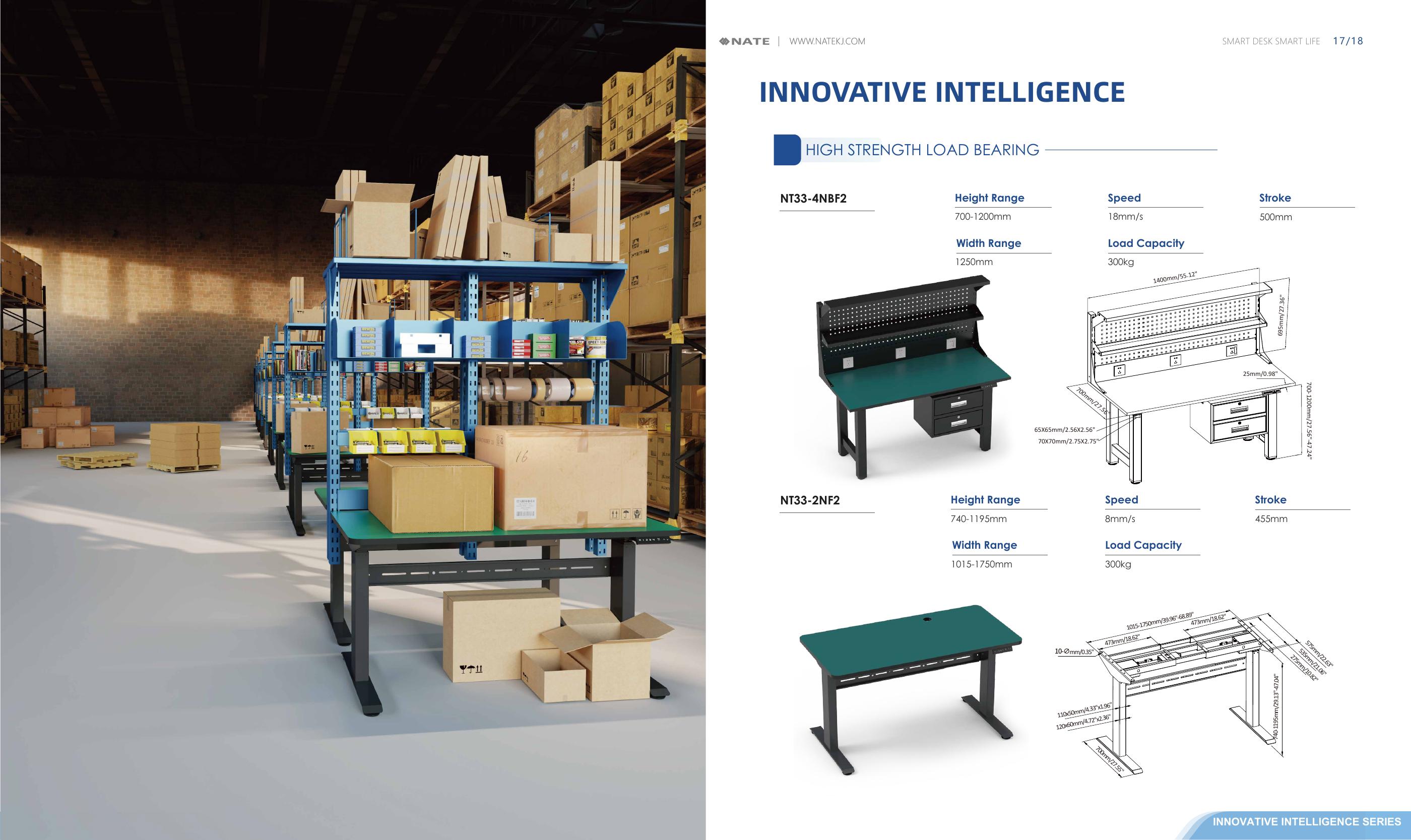

NATE 2026 COLLECTION CATALOGUE PP. 17–18
01 / PRODUCT SPECIFICATIONS
The details.
Clearly defined.
Specifications for NT33-2NF2, as listed in the NATE 2026 catalogue.
| Height range | 740–1195 mm |
|---|---|
| Frame width | 1015–1750 mm |
| Speed | 8 mm/s |
| Load capacity | 300 kg |
| Stroke | 455 mm |
02 / TECHNICAL REFERENCE

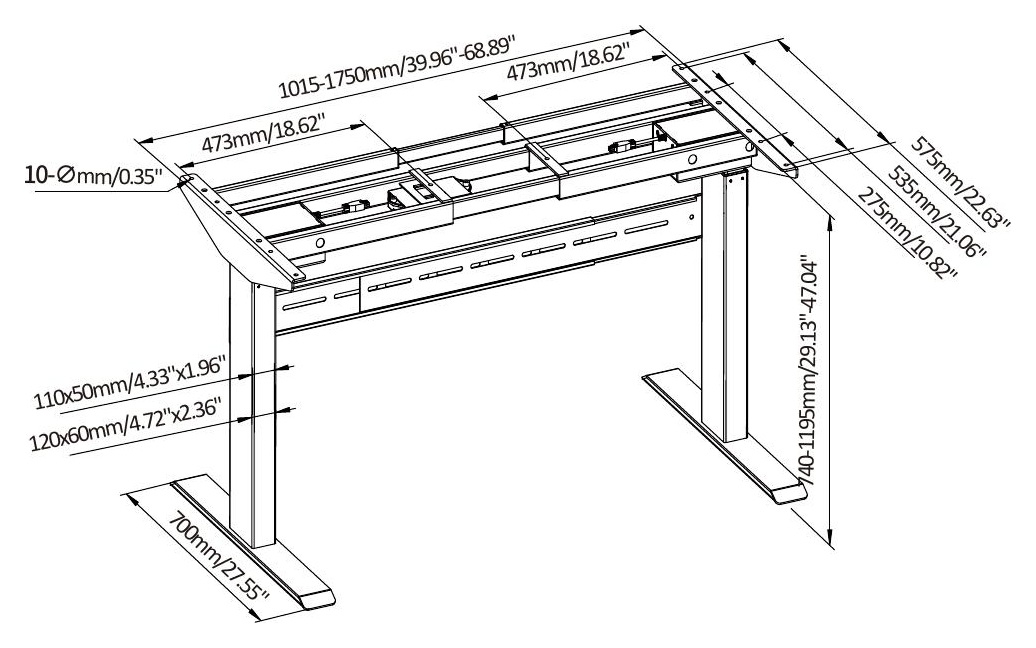

Dimensions & drawings
Dimensions and annotations are reproduced from the product catalogue. Refer to the labels on the drawing for units.
PRODUCT QUESTIONS, ANSWERED
Before you specify.
What is the load capacity of NATE NT33-2NF2?
The NATE 2026 catalogue lists 300 kg for NT33-2NF2. This is the load capacity of the listed configuration, not its own weight.
What height range does NT33-2NF2 offer?
The published height range is 740–1195 mm. The listed lifting speed is 8 mm/s.
Where can I find the dimensions and source for NT33-2NF2?
This page provides the original dimension drawing. Open the technical reference above and the original catalogue on printed pages 17–18. Confirm the final configuration with NATE.
