01 / PRODUCT IMAGE
2026 catalogue ↗NT33-RK-2BHF3
Slim no-box electric standing desk frame
A vertical motor arrangement removes the traditional 90° motor box.
- Load capacity
- 120 kg
- Height range
- 656–1286 mm
- Speed
- 40 mm/s
- Stroke
- 630 mm
The details.
Clearly defined.
Specifications for NT33-RK-2BHF3, as listed in the NATE 2026 catalogue.
| Height range | 656–1286 mm |
|---|---|
| Frame width | 960–1500 mm |
| Speed | 40 mm/s |
| Load capacity | 120 kg |
| Stroke | 630 mm |
| Input voltage | 100–240 V |

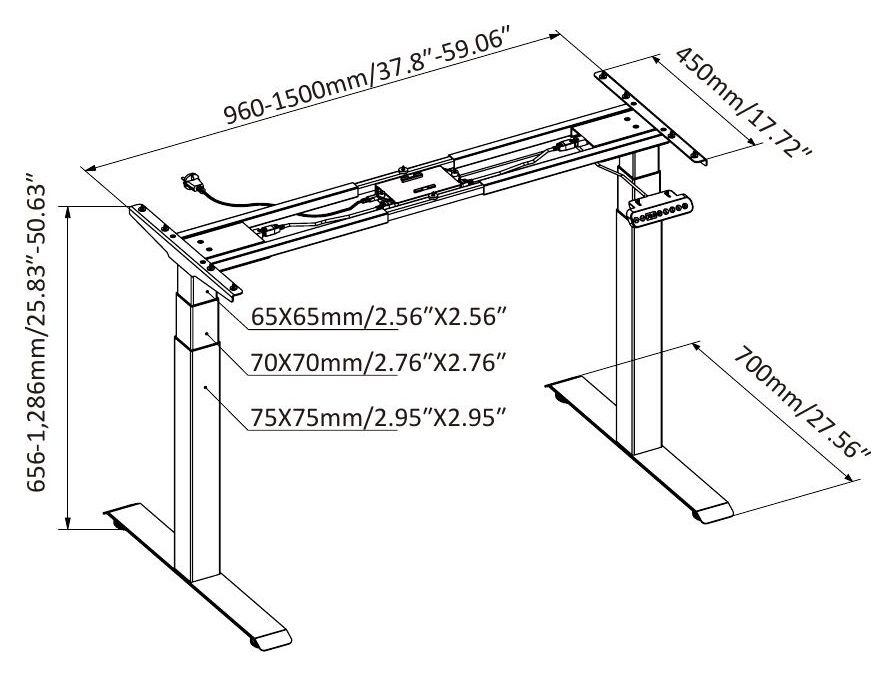

Dimensions & drawings
Dimensions and annotations are reproduced from the product catalogue. Refer to the labels on the drawing for units.
Before you specify.
What is the load capacity of NATE NT33-RK-2BHF3?
The NATE 2026 catalogue lists 120 kg for NT33-RK-2BHF3. This is the load capacity of the listed configuration, not its own weight.
What height range does NT33-RK-2BHF3 offer?
The published height range is 656–1286 mm. The listed lifting speed is 40 mm/s.
Where can I find the dimensions and source for NT33-RK-2BHF3?

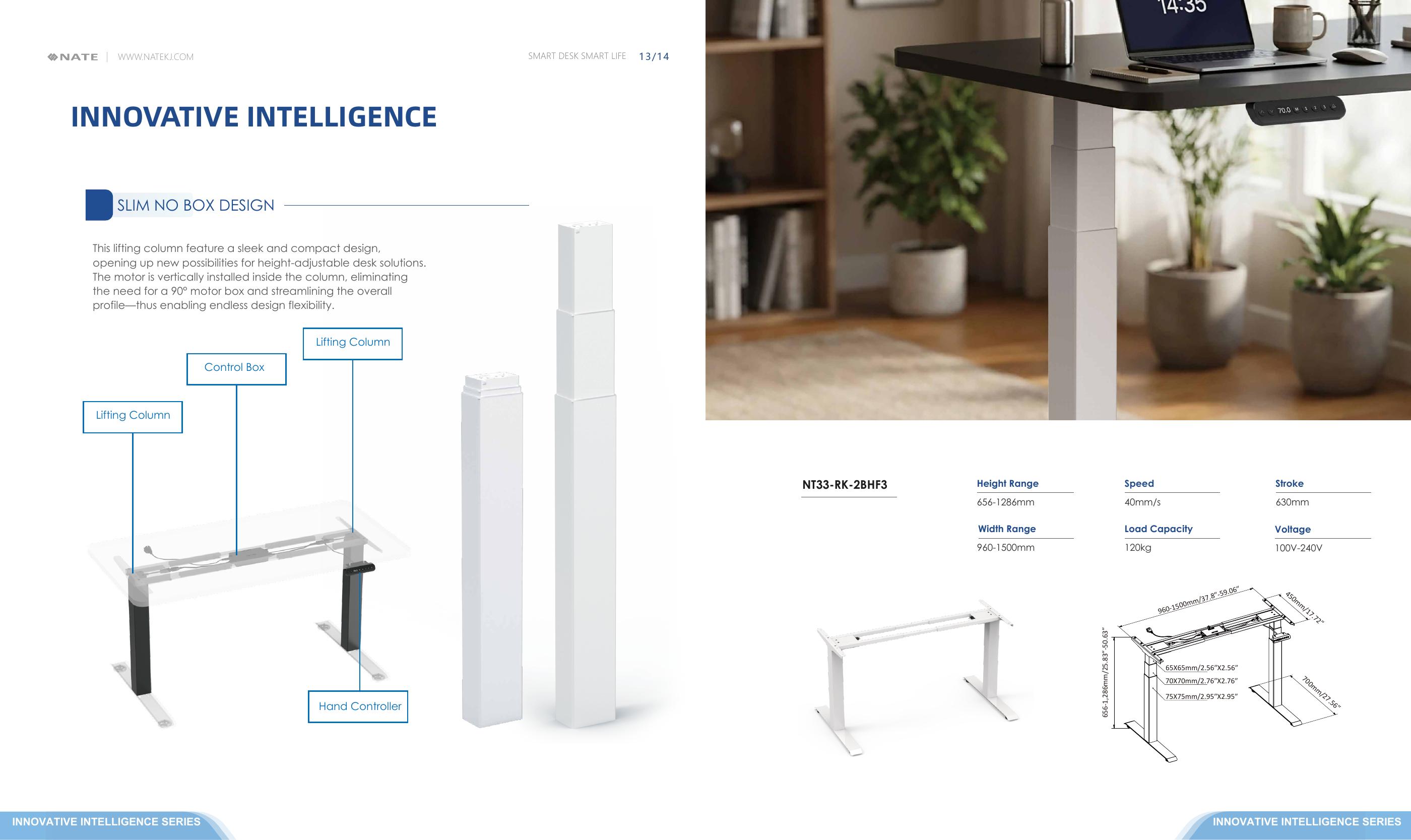

This page provides the original dimension drawing. Open the technical reference above and the original catalogue on printed pages 13–14. Confirm the final configuration with NATE.
Make it work
for your project.
Share your requirements for NT33-RK-2BHF3. Our team can help with product selection and configuration details.
