2026 catalogue ↗NT33-2YDTV(E)
Dual-display electric lifting stand
Height-adjustable display support for shared spaces.
- Load capacity
- 100 kg
- Height range
- 920–1570 mm
- Speed
- 30 mm/s
- Stroke
- 650 mm
The details.
Clearly defined.
Specifications for NT33-2YDTV(E), as listed in the NATE 2026 catalogue.
| Height range | 920–1570 mm |
|---|---|
| Display size | Dual-monitor / 40–165 in |
| Speed | 30 mm/s |
| Load capacity | 100 kg |
| Stroke | 650 mm |
| Input voltage | 100–240 V |
The catalogue lists “Dual-Monitor / 40–165 inches” without clarifying whether the range refers to each screen or the combined arrangement. Confirm screen sizes, weight and mounting configuration with NATE.

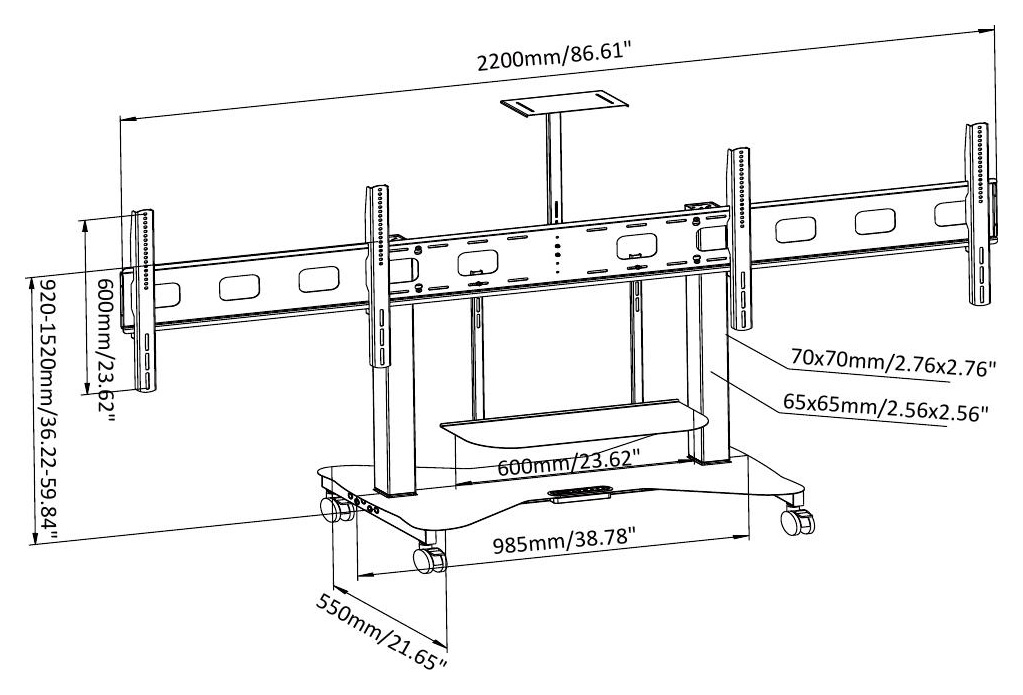

Dimensions & drawings
Dimensions and annotations are reproduced from the product catalogue. Refer to the labels on the drawing for units.
Before you specify.
What is the load capacity of NATE NT33-2YDTV(E)?
The NATE 2026 catalogue lists 100 kg for NT33-2YDTV(E). This is the load capacity of the listed configuration, not its own weight.
What height range does NT33-2YDTV(E) offer?
The published height range is 920–1570 mm. The listed lifting speed is 30 mm/s.
Where can I find the dimensions and source for NT33-2YDTV(E)?

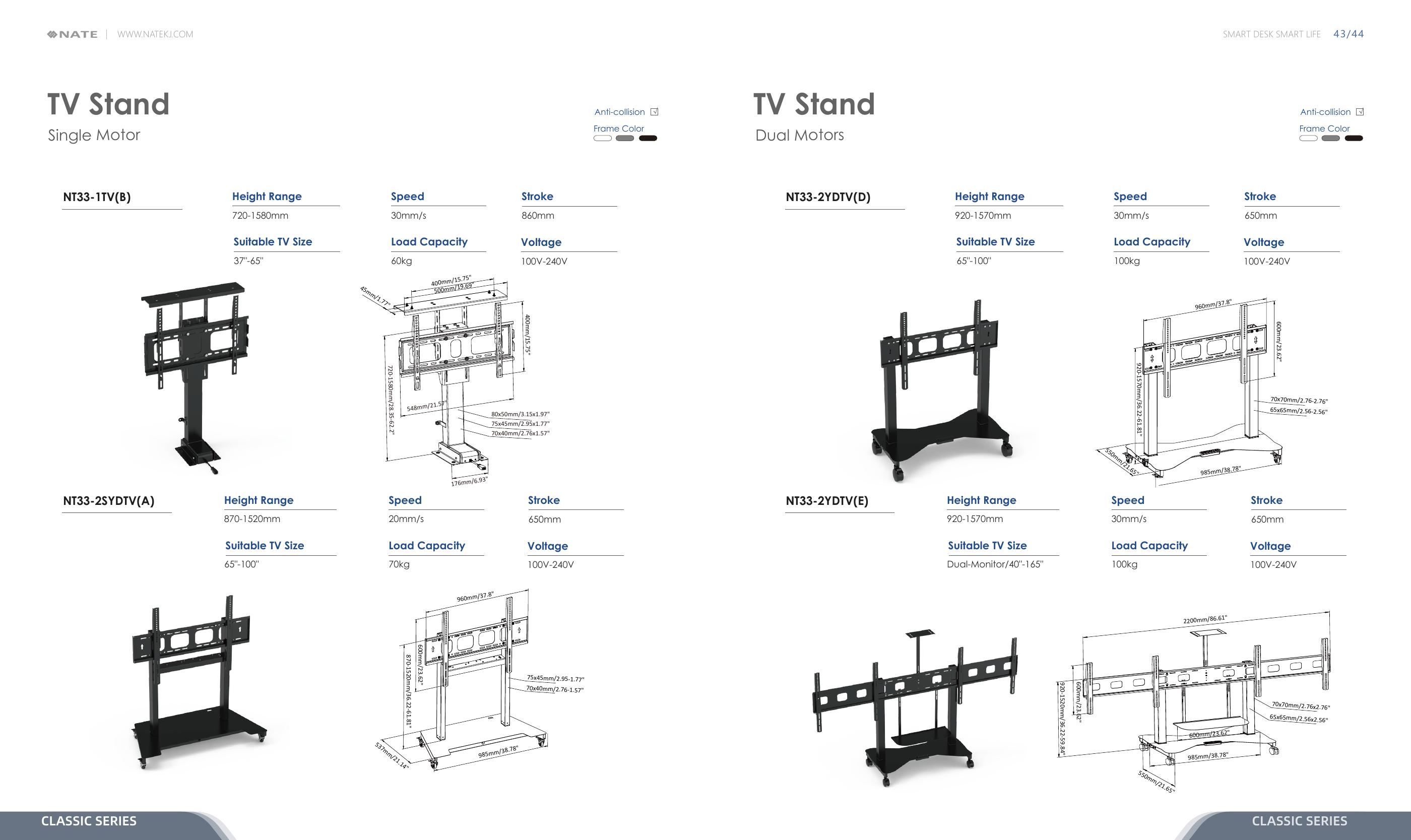

This page provides the original dimension drawing. Open the technical reference above and the original catalogue on printed pages 43–44. Confirm the final configuration with NATE.
