01 / PRODUCT IMAGE
2026 catalogue ↗NT33-1TV(B)
Single-column electric TV lift stand
Height-adjustable display support for shared spaces.
- Load capacity
- 60 kg
- Height range
- 720–1580 mm
- Speed
- 30 mm/s
- Stroke
- 860 mm
The details.
Clearly defined.
Specifications for NT33-1TV(B), as listed in the NATE 2026 catalogue.
| Height range | 720–1580 mm |
|---|---|
| Display size | 37–65 in |
| Speed | 30 mm/s |
| Load capacity | 60 kg |
| Stroke | 860 mm |
| Input voltage | 100–240 V |

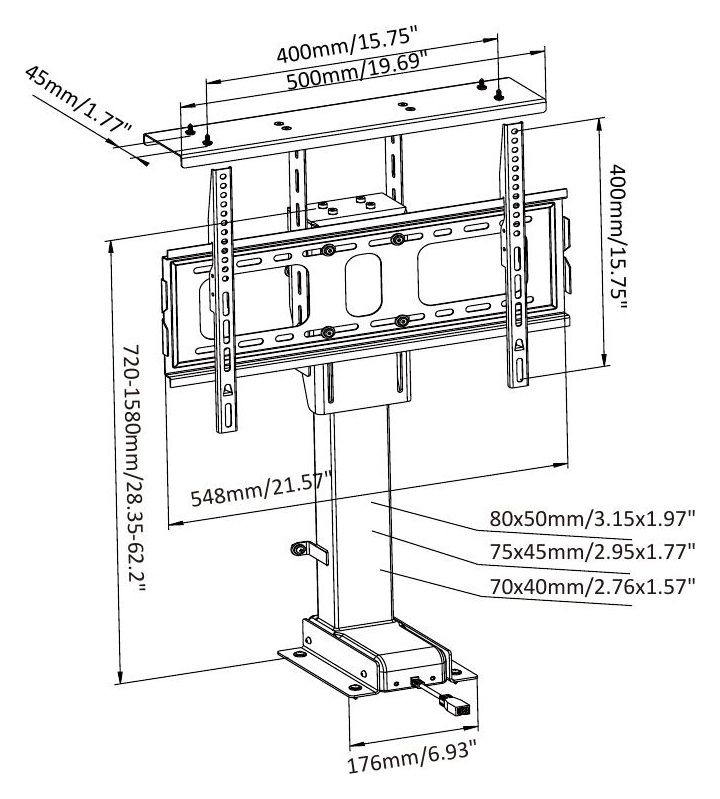

Dimensions & drawings
Dimensions and annotations are reproduced from the product catalogue. Refer to the labels on the drawing for units.
Before you specify.
What is the load capacity of NATE NT33-1TV(B)?
The NATE 2026 catalogue lists 60 kg for NT33-1TV(B). This is the load capacity of the listed configuration, not its own weight.
What height range does NT33-1TV(B) offer?
The published height range is 720–1580 mm. The listed lifting speed is 30 mm/s.
Where can I find the dimensions and source for NT33-1TV(B)?
This page provides the original dimension drawing. Open the technical reference above and the original catalogue on printed pages 43–44. Confirm the final configuration with NATE.
