01 / PRODUCT IMAGE
2026 catalogue ↗NT33-2SYDTV(A)
Single-motor large-screen TV lift stand
Height-adjustable display support for shared spaces.
- Load capacity
- 70 kg
- Height range
- 870–1520 mm
- Speed
- 20 mm/s
- Stroke
- 650 mm
The details.
Clearly defined.
Specifications for NT33-2SYDTV(A), as listed in the NATE 2026 catalogue.
| Height range | 870–1520 mm |
|---|---|
| Display size | 65–100 in |
| Speed | 20 mm/s |
| Load capacity | 70 kg |
| Stroke | 650 mm |
| Input voltage | 100–240 V |
The 870–1520 mm height range follows the specification block. Some imperial annotations on the catalogue drawing are inconsistent; confirm mounting dimensions with NATE.

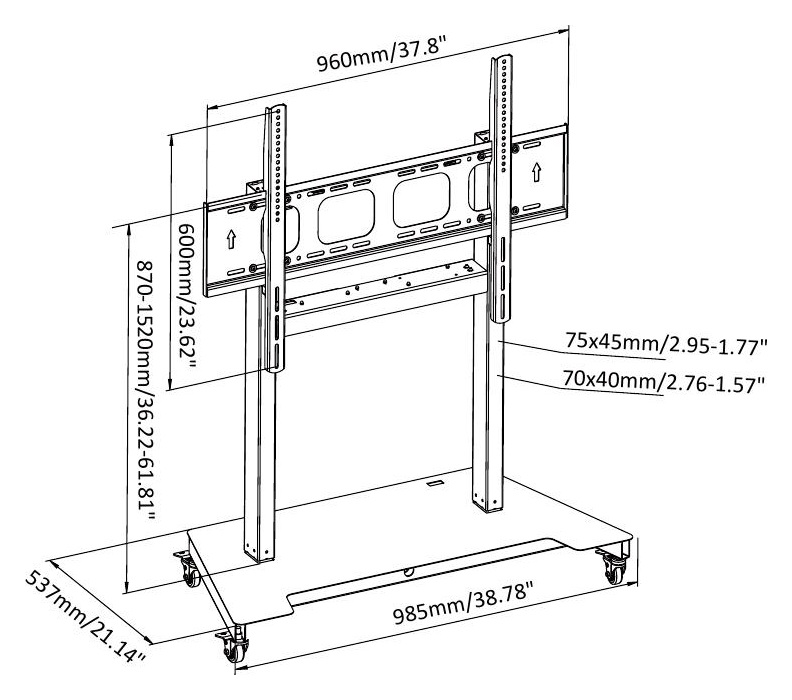

Dimensions & drawings
Dimensions and annotations are reproduced from the product catalogue. Refer to the labels on the drawing for units.
Before you specify.
What is the load capacity of NATE NT33-2SYDTV(A)?
The NATE 2026 catalogue lists 70 kg for NT33-2SYDTV(A). This is the load capacity of the listed configuration, not its own weight.
What height range does NT33-2SYDTV(A) offer?
The published height range is 870–1520 mm. The listed lifting speed is 20 mm/s.
Where can I find the dimensions and source for NT33-2SYDTV(A)?
This page provides the original dimension drawing. Open the technical reference above and the original catalogue on printed pages 43–44. Confirm the final configuration with NATE.
Make it work
for your project.
Share your requirements for NT33-2SYDTV(A). Our team can help with product selection and configuration details.
