NT33-BC
Three-leg standing desk control box
Advanced control system for compatible three-leg configurations.
- Supported legs
- 3
- Input
- 100–240 V · 50–60 Hz · 10.5 A
- Output
- 30 V DC · 10.5 A total
NATE 2026 COLLECTION CATALOGUE PP. 75–76
01 / PRODUCT SPECIFICATIONS
The details.
Clearly defined.
Specifications for NT33-BC, as listed in the NATE 2026 catalogue.
| Supported legs | 3 |
|---|---|
| Input | 100–240 V · 50–60 Hz · 10.5 A |
| Output | 30 V DC · 10.5 A total |
| Duty cycle | 2 min on / 18 min off |
| Protection | Anti-collision sensitivity function |
02 / TECHNICAL REFERENCE
Catalogue reference

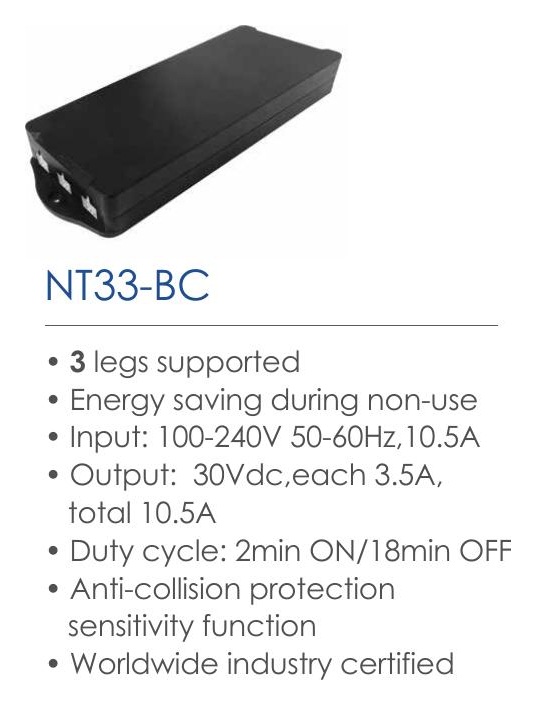

A dimensioned drawing is not included for this item in the supplied catalogue. The original specification panel is shown below; contact NATE for an engineering drawing.
PRODUCT QUESTIONS, ANSWERED
Before you specify.
Where can I find the dimensions and source for NT33-BC?
The supplied catalogue provides a catalogue specification panel rather than a full engineering drawing. Open the technical reference above and the original catalogue on printed pages 75–76. Confirm the final configuration with NATE.
