Three-stage rectangular electric lifting column
Rectangular lifting column for compatible desk configurations.
- Load capacity
- 800 N
- Height range
- 565–1215 mm
- Speed
- 40 mm/s
- Stroke
- 650 mm
The details.
Clearly defined.
Specifications for AF3, as listed in the NATE 2026 catalogue.
| Load capacity | 800 N |
|---|---|
| Height range | 565–1215 mm |
| Stroke | 650 mm |
| Speed | 40 mm/s |
| Orientation | Standard |

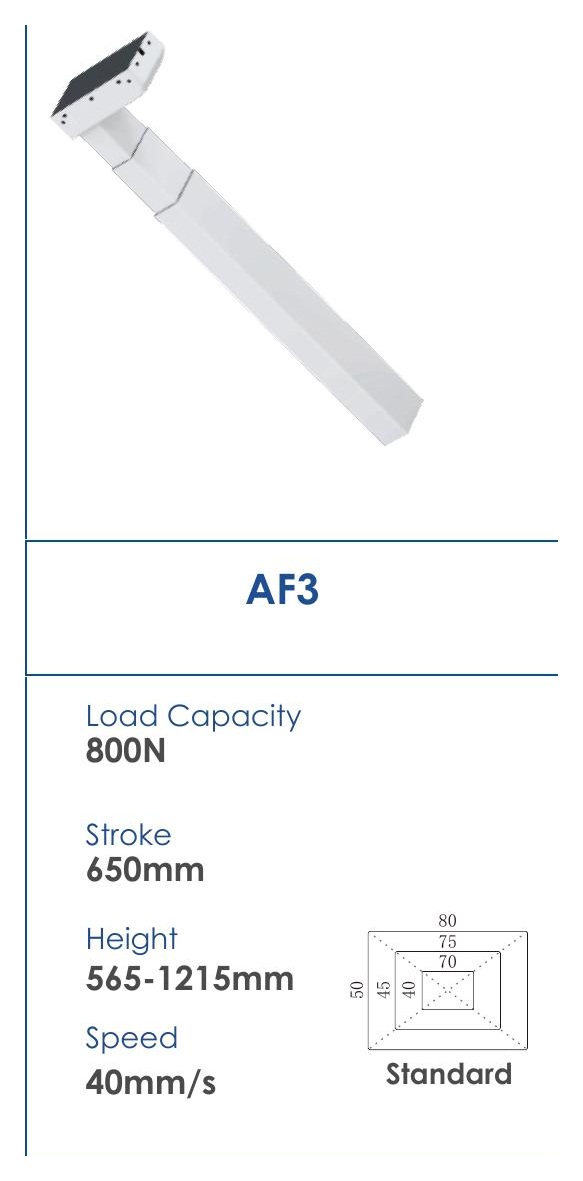

Column profile & reference
The catalogue shows the column profile alongside its performance specifications. Request a detailed engineering drawing for your configuration.
Before you specify.
What is the load capacity of NATE AF3?
The NATE 2026 catalogue lists 800 N for AF3. This is the load capacity of the listed column, not its own weight.
What height range does AF3 offer?
The published height range is 565–1215 mm. The listed lifting speed is 40 mm/s.
Where can I find the dimensions and source for AF3?

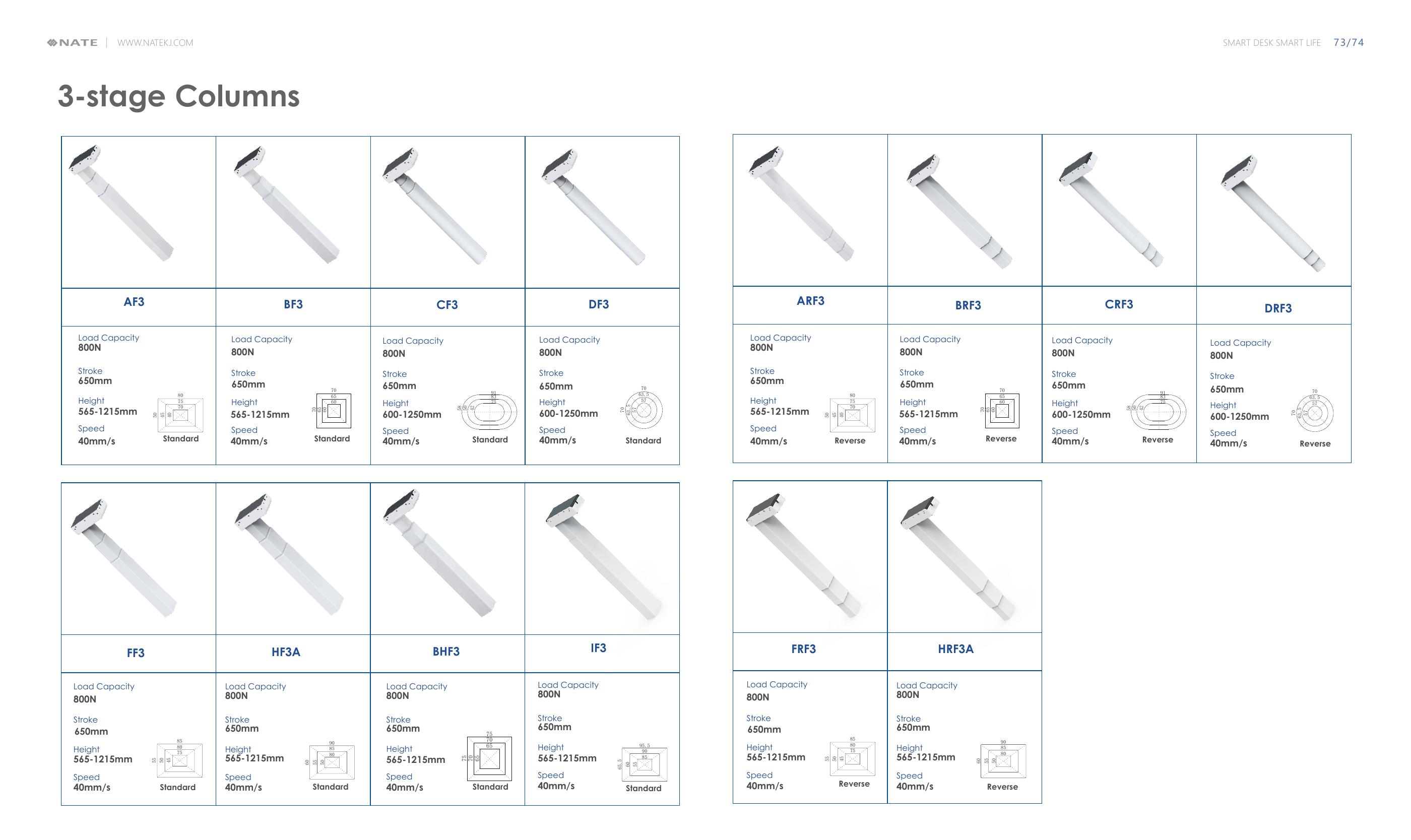

The supplied catalogue provides a column profile & specifications rather than a full engineering drawing. Open the technical reference above and the original catalogue on printed pages 73–74. Confirm the final configuration with NATE.
