01 / PRODUCT IMAGE
2026 catalogue ↗NT33-2URF2
Economical dual-motor standing desk frame
Two-stage frame with the economical control system.
- Load capacity
- 100 kg
- Height range
- 700–1200 mm
- Speed
- 30 mm/s
- Stroke
- 500 mm
The details.
Clearly defined.
Specifications for NT33-2URF2, as listed in the NATE 2026 catalogue.
| Height range | 700–1200 mm |
|---|---|
| Frame width | 960–1500 mm |
| Speed | 30 mm/s |
| Load capacity | 100 kg |
| Stroke | 500 mm |
| Input voltage | 100–240 V |

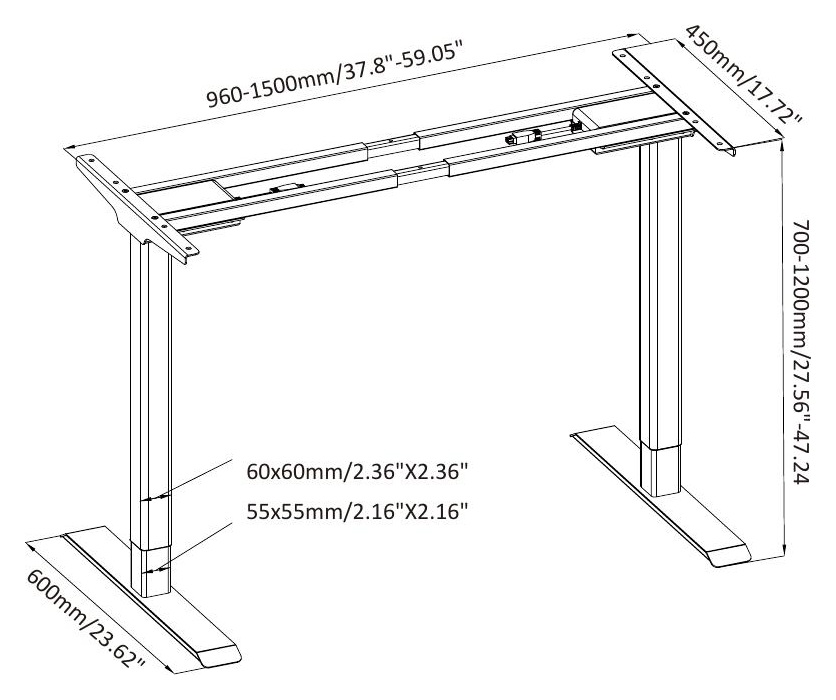

Dimensions & drawings
Dimensions and annotations are reproduced from the product catalogue. Refer to the labels on the drawing for units.
Before you specify.
What is the load capacity of NATE NT33-2URF2?
The NATE 2026 catalogue lists 100 kg for NT33-2URF2. This is the load capacity of the listed configuration, not its own weight.
What height range does NT33-2URF2 offer?
The published height range is 700–1200 mm. The listed lifting speed is 30 mm/s.
Where can I find the dimensions and source for NT33-2URF2?

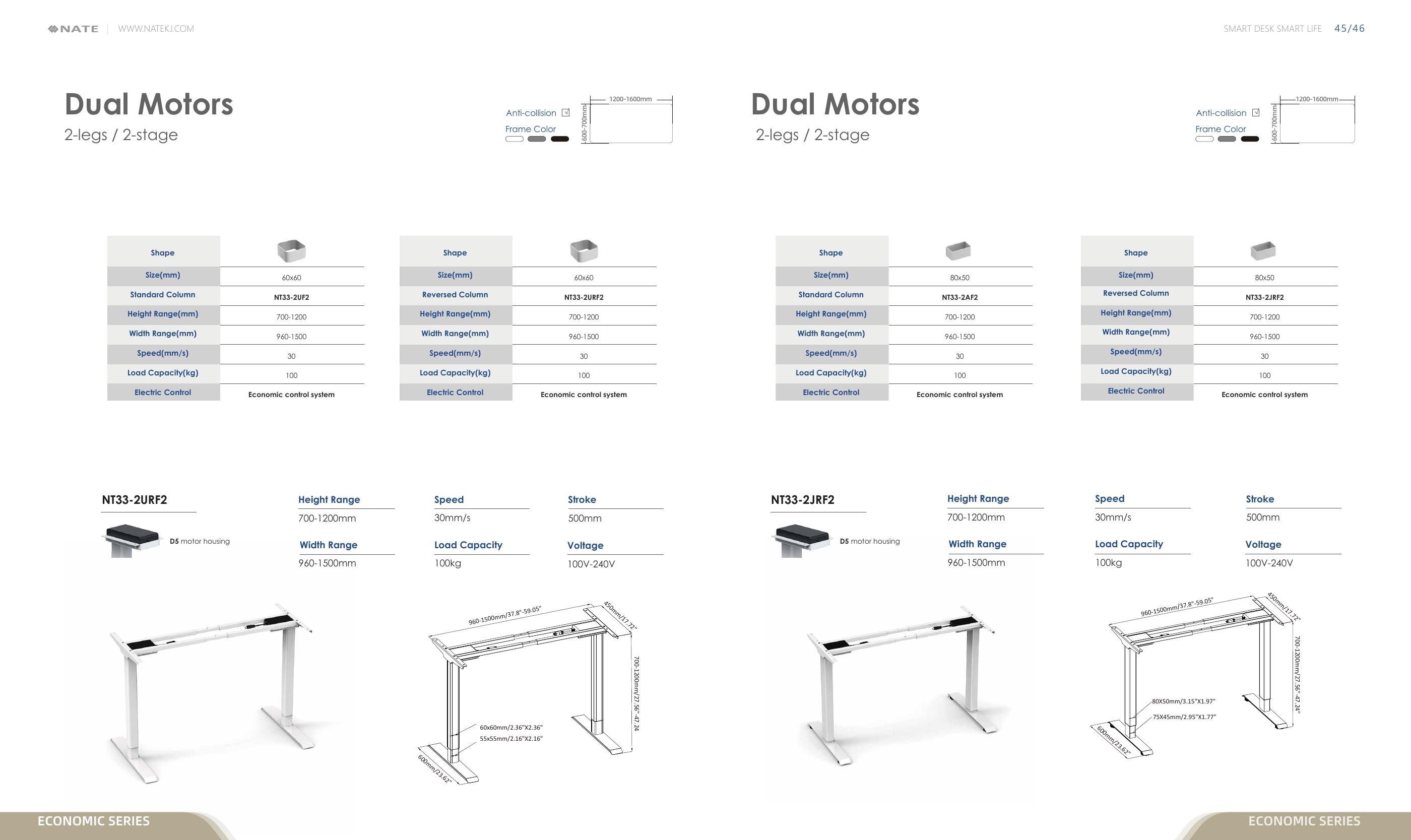

This page provides the original dimension drawing. Open the technical reference above and the original catalogue on printed pages 45–46. Confirm the final configuration with NATE.
Make it work
for your project.
Share your requirements for NT33-2URF2. Our team can help with product selection and configuration details.
