01 / PRODUCT IMAGE
2026 catalogue ↗Standing Desk Frames / Manual
NT33-2MR2
Manual hand-crank standing desk frame
Manual height adjustment with a two-stage frame.
- Load capacity
- 80 kg
- Height range
- 700–1150 mm
- Stroke
- 450 mm
NATE 2026 COLLECTION CATALOGUE PP. 55–56
01 / PRODUCT SPECIFICATIONS
The details.
Clearly defined.
Specifications for NT33-2MR2, as listed in the NATE 2026 catalogue.
| Height range | 700–1150 mm |
|---|---|
| Frame width | 910 mm |
| Lift per turn | 10 mm/turn |
| Load capacity | 80 kg |
| Stroke | 450 mm |
02 / TECHNICAL REFERENCE

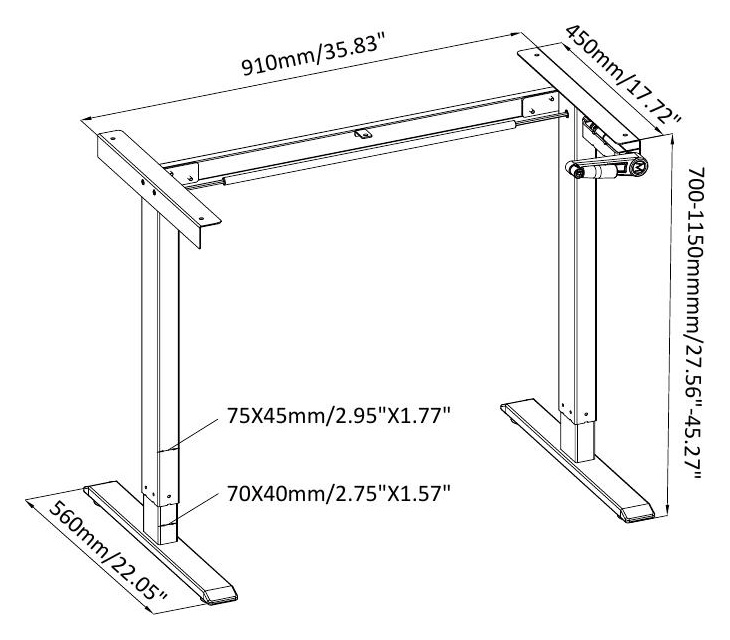

Dimensions & drawings
Dimensions and annotations are reproduced from the product catalogue. Refer to the labels on the drawing for units.
PRODUCT QUESTIONS, ANSWERED
Before you specify.
What is the load capacity of NATE NT33-2MR2?
The NATE 2026 catalogue lists 80 kg for NT33-2MR2. This is the load capacity of the listed configuration, not its own weight.
What height range does NT33-2MR2 offer?
The published height range is 700–1150 mm.
Where can I find the dimensions and source for NT33-2MR2?

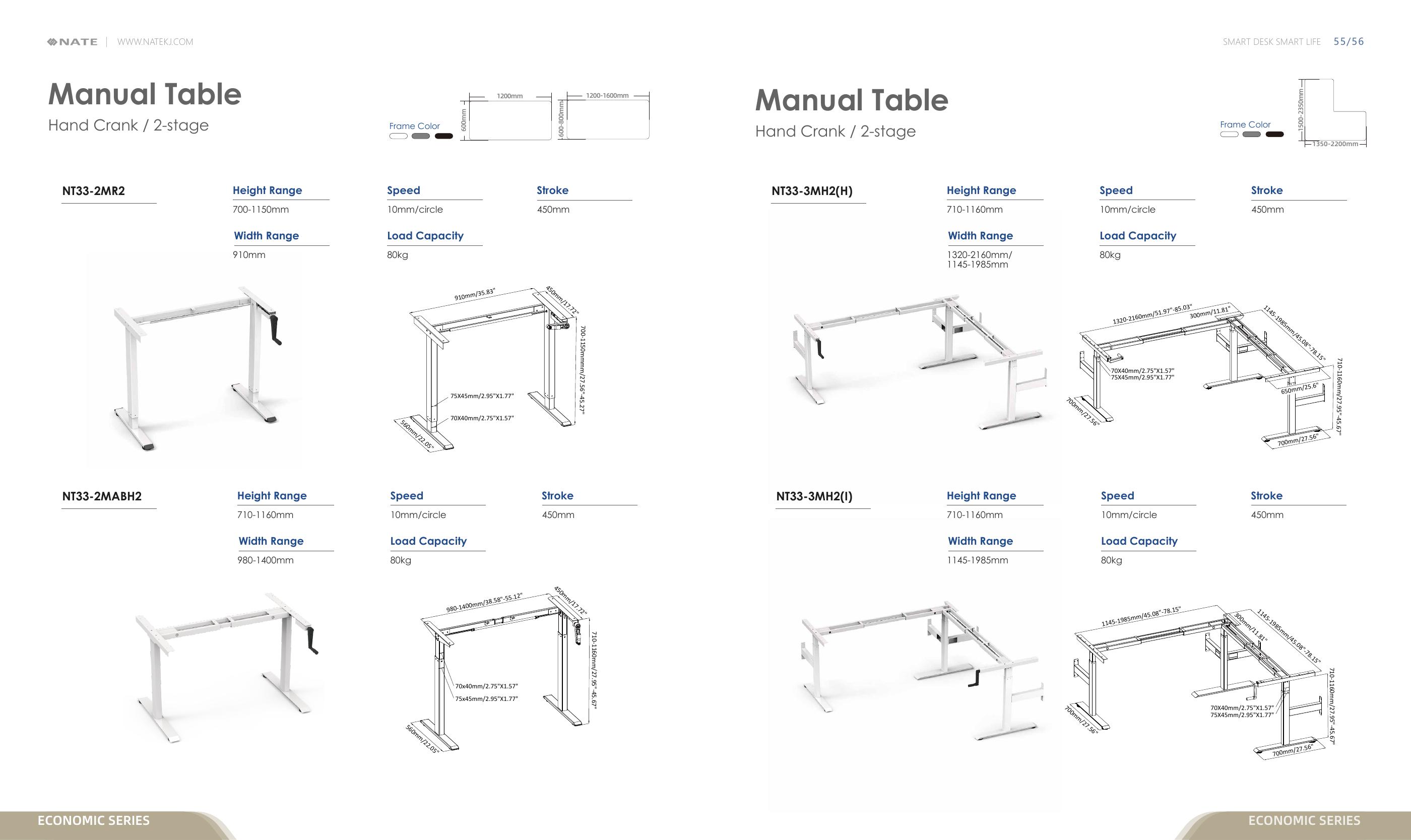

This page provides the original dimension drawing. Open the technical reference above and the original catalogue on printed pages 55–56. Confirm the final configuration with NATE.
LET'S FIND THE RIGHT CONFIGURATION
Make it work
for your project.
Share your requirements for NT33-2MR2. Our team can help with product selection and configuration details.
