2026 catalogue ↗FA03B
Bevel foot for standing desk frames
A bevel-style foot for compatible rectangular columns.
- Dimensions
- 700 × 75 × 20 mm
The details.
Clearly defined.
Specifications for FA03B, as listed in the NATE 2026 catalogue.
| Dimensions | 700 × 75 × 20 mm |
|---|---|
| Plate thickness | 2.5 / 2.5 mm |
| Fits tube | Rectangle, 80 × 50 mm |
| Style | Bevel |

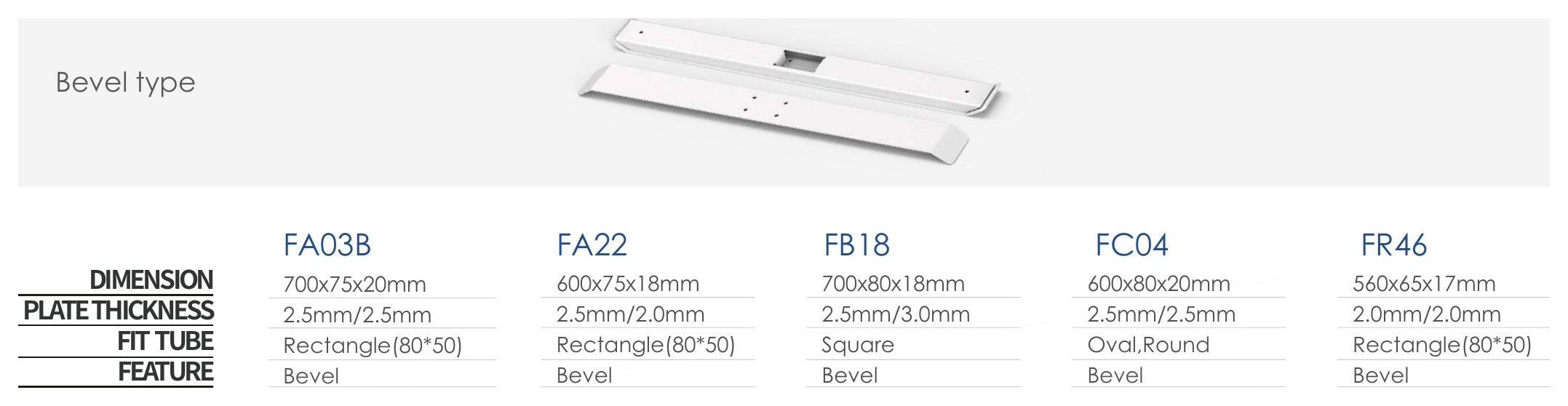

The catalogue uses a shared bevel-foot illustration for several models. The listed dimensions and plate thickness are taken specifically from the FA03B table column.
Catalogue reference

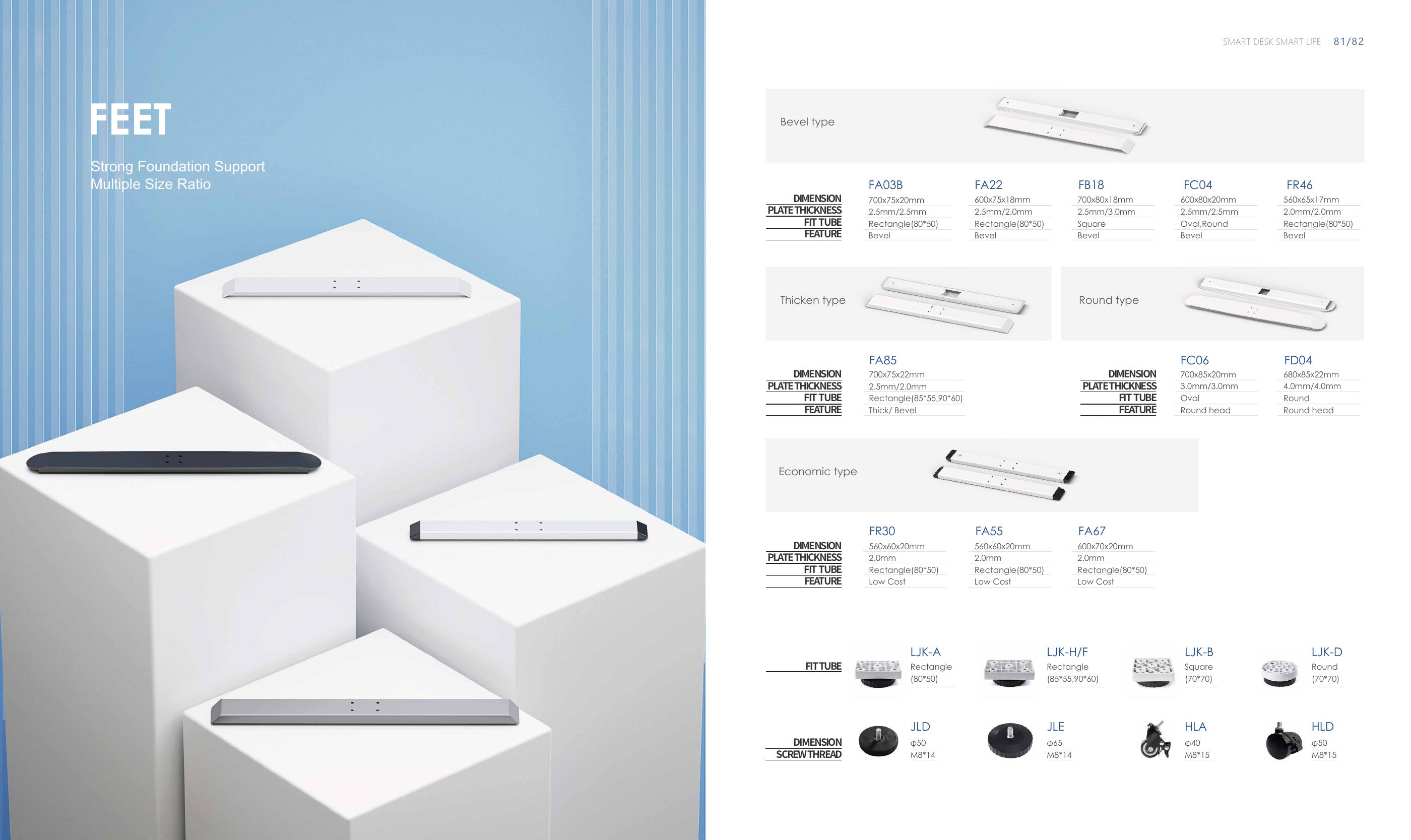

A dimensioned drawing is not included for this item in the supplied catalogue. The original specification panel is shown below; contact NATE for an engineering drawing.
Before you specify.
Where can I find the dimensions and source for FA03B?
The supplied catalogue provides a catalogue specification panel rather than a full engineering drawing. Open the technical reference above and the original catalogue on printed pages 81–82. Confirm the final configuration with NATE.
Make it work
for your project.
Share your requirements for FA03B. Our team can help with product selection and configuration details.
