01 / PRODUCT IMAGE
2026 catalogue ↗NT33-OB-9DF3
120-degree height-adjustable team workstation
A 120° configuration for collaborative office layouts.
- Load capacity
- 150 kg per position
- Height range
- 635–1285 mm
- Speed
- 40 mm/s
- Stroke
- 650 mm
The details.
Clearly defined.
Specifications for NT33-OB-9DF3, as listed in the NATE 2026 catalogue.
| Height range | 635–1285 mm |
|---|---|
| Frame width | 755–1145 mm |
| Speed | 40 mm/s |
| Load capacity | 150 kg per position |
| Stroke | 650 mm |
| Input voltage | 100–240 V |

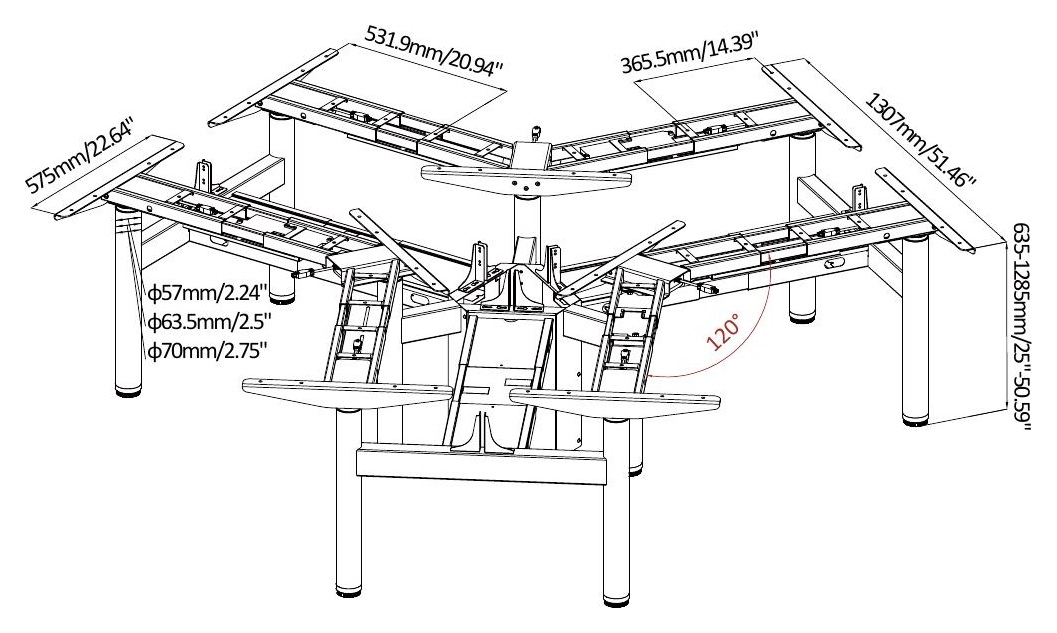

Dimensions & drawings
Dimensions and annotations are reproduced from the product catalogue. Refer to the labels on the drawing for units.
Before you specify.
What is the load capacity of NATE NT33-OB-9DF3?
The NATE 2026 catalogue lists 150 kg per position for NT33-OB-9DF3. This is the load capacity of the listed configuration, not its own weight.
What height range does NT33-OB-9DF3 offer?
The published height range is 635–1285 mm. The listed lifting speed is 40 mm/s.
Where can I find the dimensions and source for NT33-OB-9DF3?
This page provides the original dimension drawing. Open the technical reference above and the original catalogue on printed pages 39–40. Confirm the final configuration with NATE.
