01 / PRODUCT IMAGE
2026 catalogue ↗NT33-KD-2SAB2(C)
Height-adjustable learning desk with storage
Height-adjustable learning desk with an integrated storage structure.
- Load capacity
- 50 kg
- Height range
- 725–1150 mm
- Speed
- 20 mm/s
- Stroke
- 425 mm
The details.
Clearly defined.
Specifications for NT33-KD-2SAB2(C), as listed in the NATE 2026 catalogue.
| Height range | 725–1150 mm |
|---|---|
| Top size | 1040 × 720 mm |
| Speed | 20 mm/s |
| Load capacity | 50 kg |
| Stroke | 425 mm |
| Input voltage | 100–240 V |

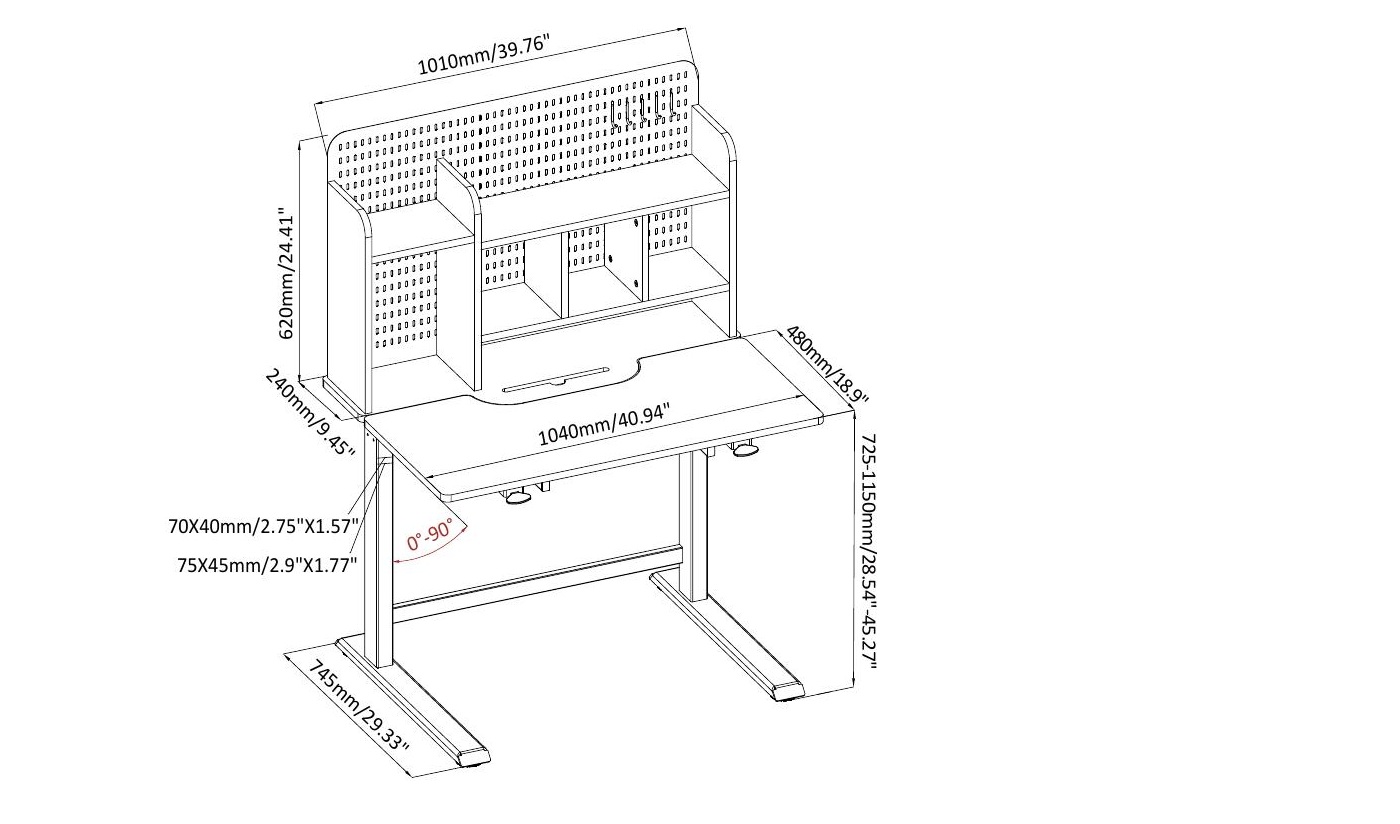

Dimensions & drawings
Dimensions and annotations are reproduced from the product catalogue. Refer to the labels on the drawing for units.
Before you specify.
What is the load capacity of NATE NT33-KD-2SAB2(C)?
The NATE 2026 catalogue lists 50 kg for NT33-KD-2SAB2(C). This is the load capacity of the listed configuration, not its own weight.
What height range does NT33-KD-2SAB2(C) offer?
The published height range is 725–1150 mm. The listed lifting speed is 20 mm/s.
Where can I find the dimensions and source for NT33-KD-2SAB2(C)?
This page provides the original dimension drawing. Open the technical reference above and the original catalogue on printed pages 59–60. Confirm the final configuration with NATE.
