01 / PRODUCT IMAGE
2026 catalogue ↗NT33-CZ-4SBERF2-C
Four-leg height-adjustable dining table
A four-leg, two-motor adjustable dining table.
- Load capacity
- 100 kg
- Height range
- 700–1180 mm
- Speed
- 20 mm/s
- Stroke
- 480 mm
The details.
Clearly defined.
Specifications for NT33-CZ-4SBERF2-C, as listed in the NATE 2026 catalogue.
| Height range | 700–1180 mm |
|---|---|
| Frame width | 1500 mm |
| Speed | 20 mm/s |
| Load capacity | 100 kg |
| Stroke | 480 mm |
| Input voltage | 100–240 V |

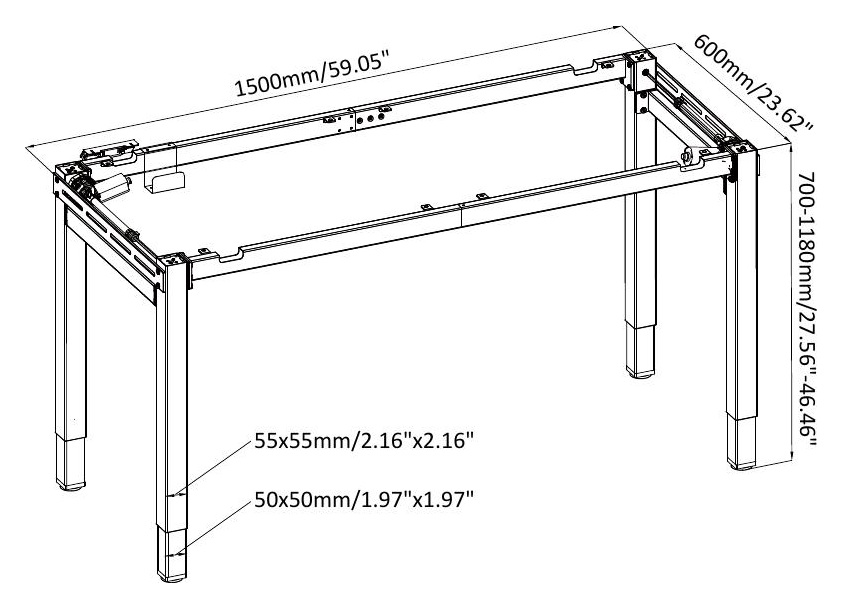

Dimensions & drawings
Dimensions and annotations are reproduced from the product catalogue. Refer to the labels on the drawing for units.
Before you specify.
What is the load capacity of NATE NT33-CZ-4SBERF2-C?
The NATE 2026 catalogue lists 100 kg for NT33-CZ-4SBERF2-C. This is the load capacity of the listed configuration, not its own weight.
What height range does NT33-CZ-4SBERF2-C offer?
The published height range is 700–1180 mm. The listed lifting speed is 20 mm/s.
Where can I find the dimensions and source for NT33-CZ-4SBERF2-C?
This page provides the original dimension drawing. Open the technical reference above and the original catalogue on printed pages 63–64. Confirm the final configuration with NATE.
