2026 catalogue ↗NT33-3AF3-90-120-180
Three-motor adjustable-angle corner desk frame
Three-motor frame with a 90°–180° rotatable configuration.
- Load capacity
- 150 kg
- Height range
- 600–1250 mm
- Speed
- 40 mm/s
- Stroke
- 650 mm
The details.
Clearly defined.
Specifications for NT33-3AF3-90-120-180, as listed in the NATE 2026 catalogue.
| Height range | 600–1250 mm |
|---|---|
| Frame width | 1010–1750 mm |
| Speed | 40 mm/s |
| Load capacity | 150 kg |
| Stroke | 650 mm |
| Input voltage | 100–240 V |

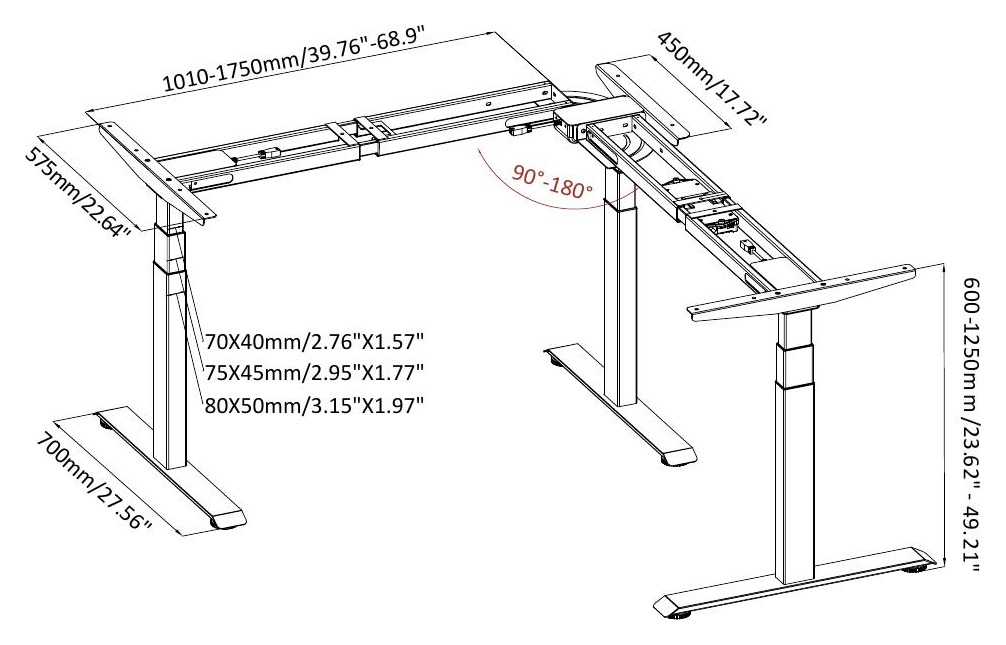

Dimensions & drawings
Dimensions and annotations are reproduced from the product catalogue. Refer to the labels on the drawing for units.
Before you specify.
What is the load capacity of NATE NT33-3AF3-90-120-180?
The NATE 2026 catalogue lists 150 kg for NT33-3AF3-90-120-180. This is the load capacity of the listed configuration, not its own weight.
What height range does NT33-3AF3-90-120-180 offer?
The published height range is 600–1250 mm. The listed lifting speed is 40 mm/s.
Where can I find the dimensions and source for NT33-3AF3-90-120-180?

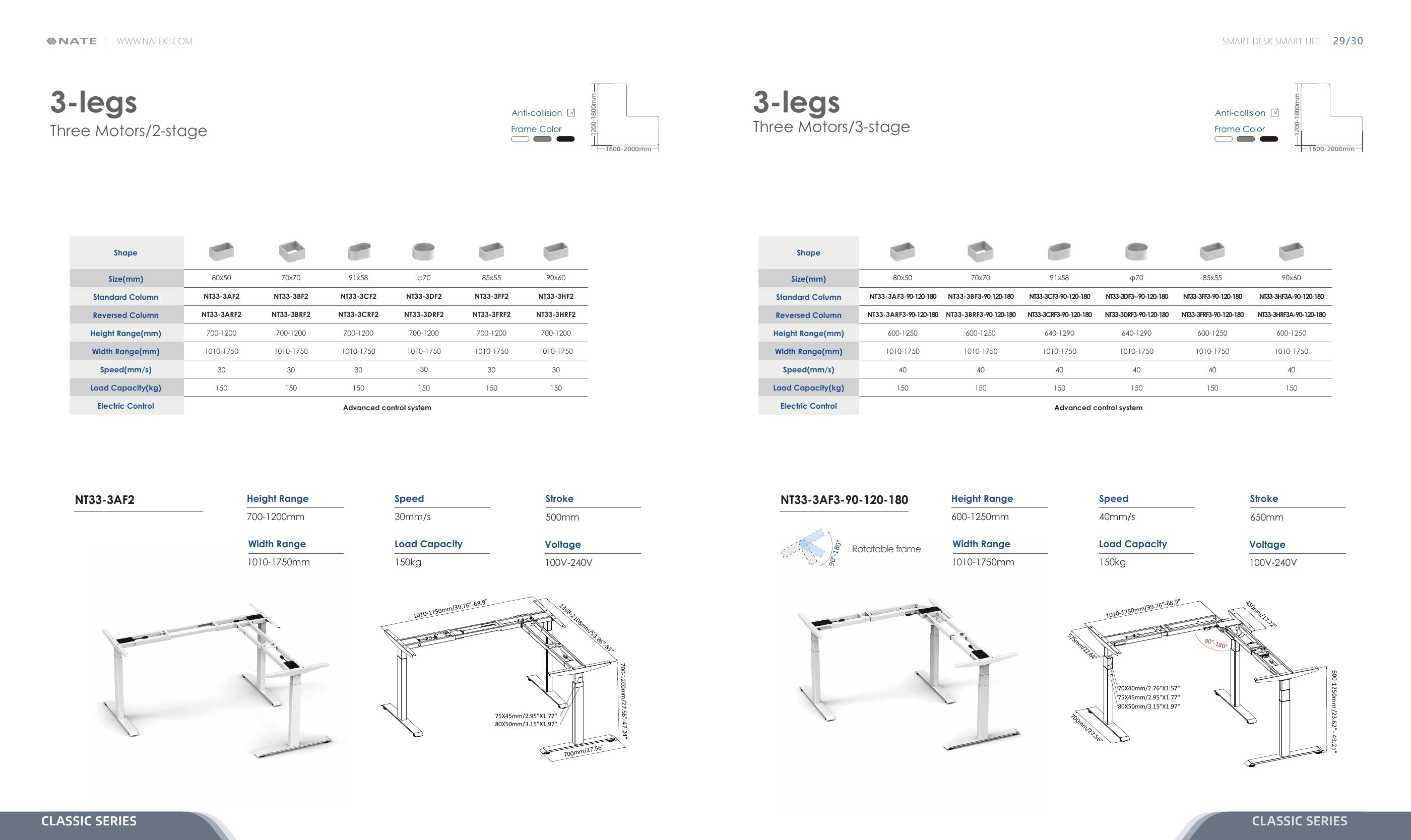

This page provides the original dimension drawing. Open the technical reference above and the original catalogue on printed pages 29–30. Confirm the final configuration with NATE.
